You can crop any part of your PDF page. The selected portion will be kept and the rest of the page will be hidden. You can recover it later if you need access to it.
Cropping a Page

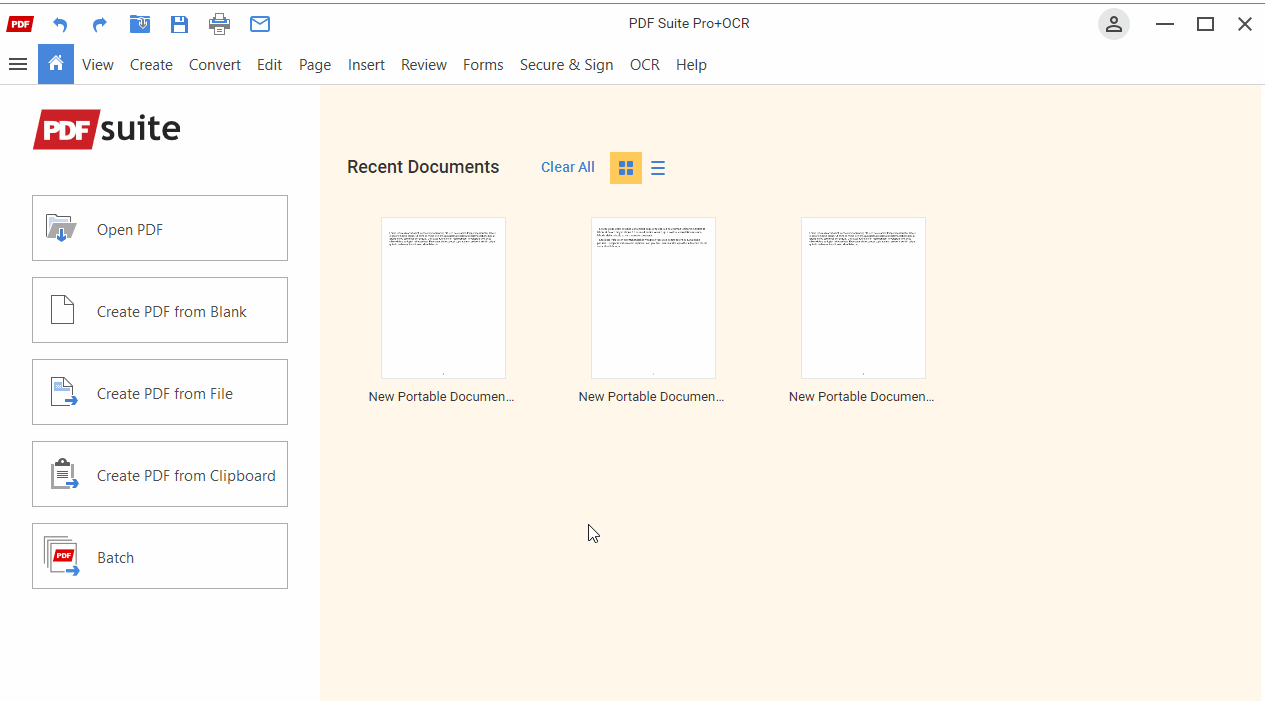

- Open the Home Tab.
- Click Batch.
- Select the Crop option.

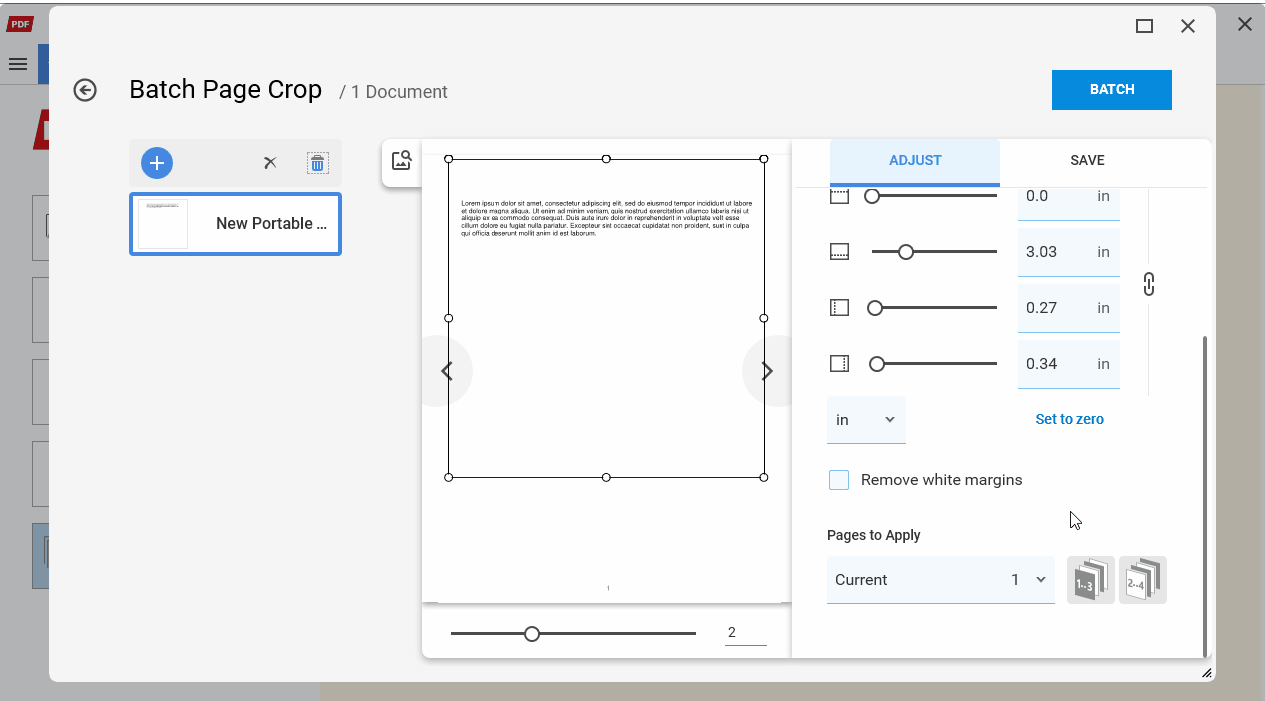

The Page Crop window will open and you will need to select the part of the page you want to keep.
Here you can fine-tune your settings. The black box in the preview section is the current area you’d like to keep.
You can set each layer of the page box you want to configure. Below is a brief description of each option.
CropBox – This is the area of the PDF page that should remain visible.
ArtBox – This is used to indicate a safety zone, where graphical elements can be added to a page without going too close to the edge of the document.
TrimBox – This will set the final page size of the PDF document.
BleedBox – This will let you set a bleed area when printing.
You can set each of these for your crop job.
- Click the dropdown under Margins.
- Choose the box you want to work with.
- Click the eye icon to see all the boxes at once.
- Adjust each box to reflect the distance away from the edge of the page you want to set the dimension.
- Click on the Constrain properties icon to lock the dimensions to the same number as you make changes.
You can set the unit of measurement you’d like to use for setting up the crop area.
- Click the dropdown under Units.
- Choose one.
You can remove white margins from your document.
- Check the box next to Remove white margins.
You can reset all proportions for each box.
- Click Set to zero and each dimension will be reset.
Now that you’ve set up the boxes for your page crop, it’s time to decide which pages in your PDF will be cropped.
- All – Each page in the document will be cropped according to your settings.
-
Range – You can decide the specific pages in your document that will be cropped.
- Using a dash (-) tells PDF-Suite to crop all pages between those page numbers, inclusively. To apply to pages between page 2 and page 5 you would type “2-5”.
- Using a comma (,) you can add multiple groups of pages. As an example, to crop all pages from 2 to 5, then page 8, page 10, and page 11, you would type it out as follows “2-5,8,10-11”.
- You can also choose between all Even and all Odd pages.
In the Save section, you can choose where you want the PDFs to be saved.
- To change the location from the default, click on the Folder icon.
- Tick the box if you want to overwrite the existing files.
- Choose the name for the files. You can keep the Original name or Add a prefix/suffix.
- Click Batch to apply your crop settings.
- On the summary screen, you can choose to Open the folder or Open the files.
- Click on DONE to close the summary screen.
Removing a Page Crop
You can undo the document crop, revealing the full contents of the document.

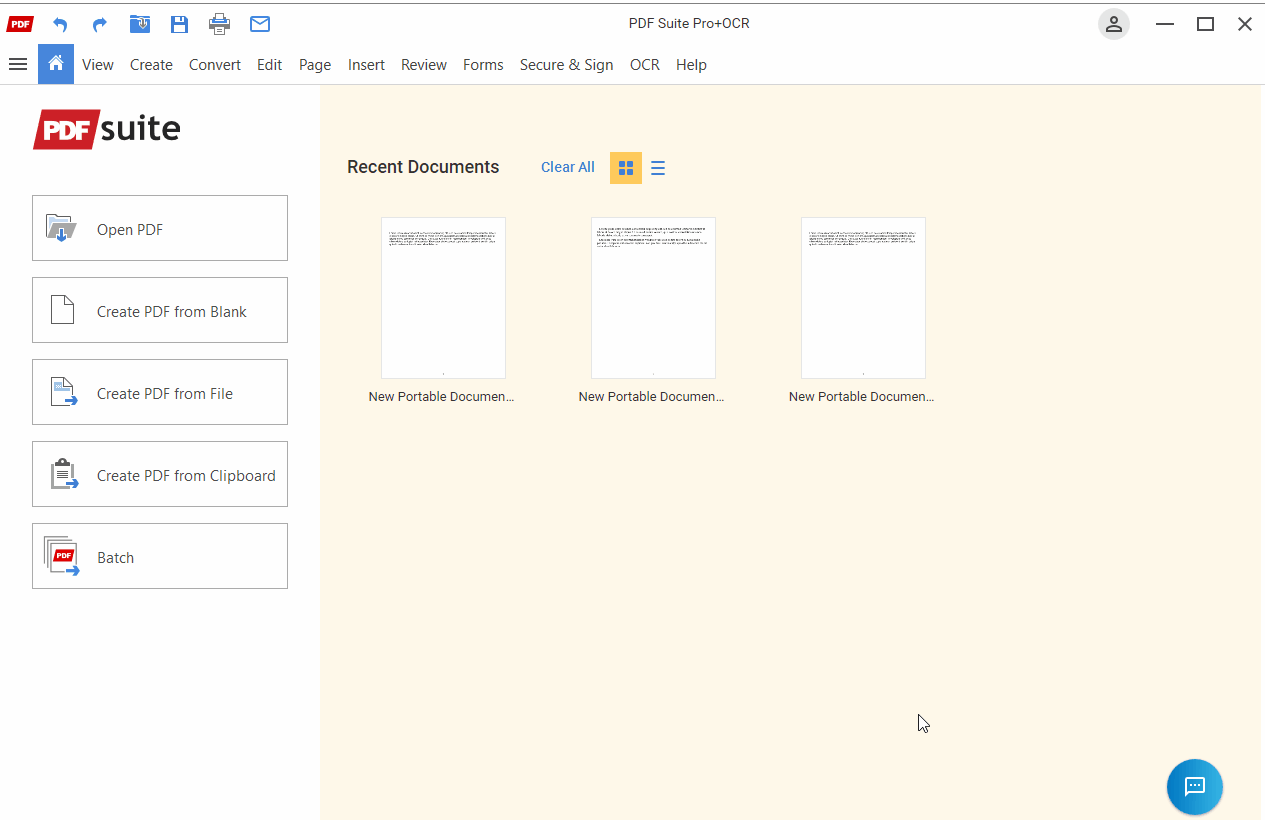

- Open the Home Tab.
- Click Batch.
- Choose Page Crop in the Batch Remove section.
- Choose the pages to remove the crop from.
- Click Remove.
